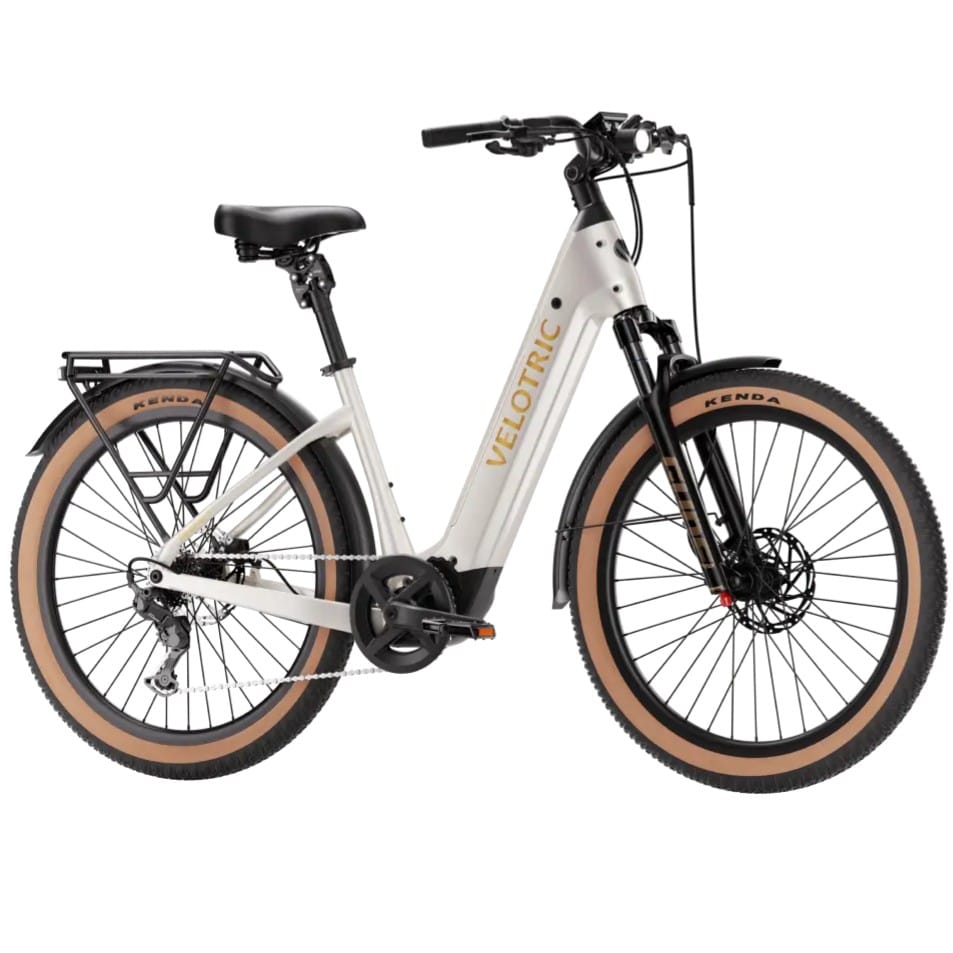

Velotric Discover M
Class 1/2/3 E-Bike, 66 lbs, 500W 100Nm mid mid-drive, 801.6Wh (48V × 16.7Ah) battery, Tektro TDK171 hydraulic disc, aluminum step-through frame, 80mm air fork, 27.5"×2.4" hybrid tires
from
Where to buy
Velotric Discover M
Performance Overview
What this shows
How this e-bike compares to similar models across the areas shown. The strengths and weaknesses below are where it stands out most, for better or worse.
Specifications
Category
| Category | Commuter, Hybrid |
Motor & Assistance
| Motor Type | Mid-Drive |
| Motor Position | Mid |
Nominal Power | 500 W |
Peak Power | 960 W |
| Torque | 100 Nm |
| Sensor Type | Both |
| Assist Levels | 4 |
Speed & Class
| E-Bike Class | Class 1, Class 2, Class 3 |
| Top Assist Speed | 28 mph |
| Throttle | Yes |
| Throttle Top Speed | 20 mph |
Battery & Range
Battery Capacity | 801.6 Wh |
| Voltage | 48 V |
| Amp Hours | 16.7 Ah |
| Max Range | 95 mi |
| Battery Position | Downtube |
| Removable Battery | No |
Frame & Fit
| Frame Material | Aluminum |
| Frame Style | Step-Through |
| Sizes Available | M, L |
| Weight | 66 lbs |
| Weight Limit | 440 lbs |
Suspension
| Front Suspension | Air |
| Front Travel | 80 mm |
| Rear Suspension | None |
| Rear Travel | 0 mm |
| Seatpost Suspension | No |
Drivetrain
| Gears | 9 |
| Drive System | Chain |
| Shifter | Trigger |
| Derailleur | Shimano CUES |
| Cassette | 11-46T |
Brakes
| Brake Type | Hydraulic Disc |
| Brake Brand | Tektro |
| Rotor Size (Front) | 180 mm |
| Rotor Size (Rear) | 180 mm |
Wheels & Tires
| Wheel Size | 27.5 " |
| Tire Width | 2.4 " |
| Tire Type | Hybrid |
| Puncture Protection | Yes |
Components & Tech
| Display | TFT |
| Display Size | 3.5 " |
| Connectivity | Bluetooth |
| App Compatible | Yes |
Features & Safety
| Integrated Lights | Yes |
| Fenders | Yes |
| Rear Rack | Yes |
| Front Rack | No |
| Kickstand | Yes |
| Chain Guard | No |
| Walk Assist | No |
| Alarm | No |
| USB Charging | No |
| Bottle Cage Mount | No |
| IP Rating | IPX6 |
| Certifications | UL 2849, UL 2271 |
| Special Features | Smartphone Integration, Turn Signals |
