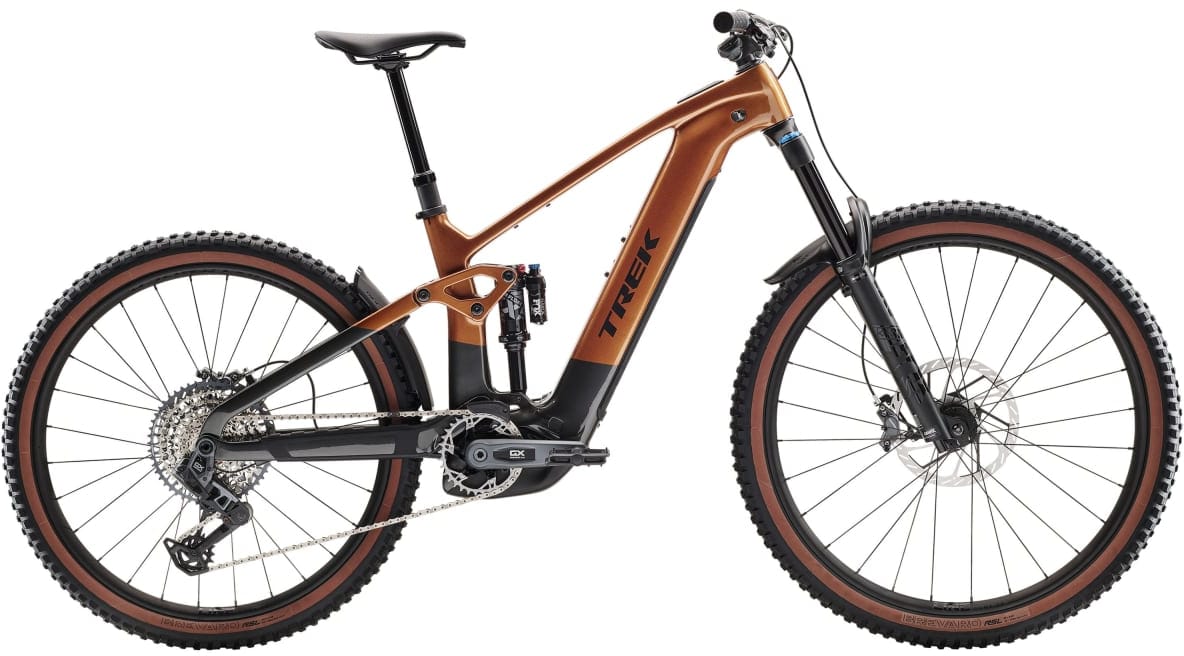

Trek Rail+ 9.8 2026
Class 1 E-Bike, 53.3 lbs, 250W 85Nm mid mid-drive, 800Wh (36V × 22.2Ah) battery, SRAM Maven Bronze hydraulic disc, carbon fiber step-over frame, 160mm air fork, 29"/27.5"×2.5" Bontrager Gunnison Elite XR knobby tires, 160mm air shock
from
Where to buy
Trek Rail+ 9.8 2026
Performance Overview
What this shows
How this e-bike compares to similar models across the areas shown. The strengths and weaknesses below are where it stands out most, for better or worse.
Specifications
Category
| Category | Mountain |
Motor & Assistance
| Motor Type | Mid-Drive |
| Motor Position | Mid |
Nominal Power | 250 W |
| Torque | 85 Nm |
| Sensor Type | Both |
| Assist Levels | 4 |
Speed & Class
| E-Bike Class | Class 1 |
| Top Assist Speed | 20 mph |
| Throttle | No |
Battery & Range
Battery Capacity | 800 Wh |
| Voltage | 36 V |
| Amp Hours | 22.2 Ah |
| Battery Position | Downtube |
| Removable Battery | Yes |
Frame & Fit
| Frame Material | Carbon Fiber |
| Frame Style | Step-Over |
| Sizes Available | S, M, L, XL |
| Weight | 53.3 lbs |
| Weight Limit | 300 lbs |
Suspension
| Front Suspension | Air |
| Front Travel | 160 mm |
| Rear Suspension | Air |
| Rear Travel | 160 mm |
| Seatpost Suspension | No |
Drivetrain
| Gears | 12 |
| Drive System | Chain |
| Shifter | Electronic |
| Derailleur | SRAM GX Eagle AXS T-Type |
| Cassette | SRAM Eagle XS-1275 T-Type 10-52T |
Brakes
| Brake Type | Hydraulic Disc |
| Brake Brand | SRAM |
| Rotor Size (Front) | 220 mm |
| Rotor Size (Rear) | 200 mm |
Wheels & Tires
| Wheel Size | 29 " |
| Wheel Size (Rear) | 27.5 " |
| Tire Width | 2.5 " |
| Tire Type | Knobby |
| Puncture Protection | No |
Components & Tech
| Display | LCD |
| Connectivity | Bluetooth |
| App Compatible | Yes |
Features & Safety
| Integrated Lights | No |
| Fenders | No |
| Rear Rack | No |
| Front Rack | No |
| Kickstand | No |
| Chain Guard | No |
| Walk Assist | Yes |
| Alarm | No |
| USB Charging | No |
| Bottle Cage Mount | No |
| IP Rating | Unknown |
| Special Features | Dropper Post, Electronic Shifting, Internal Cable Routing, Thru-Axle, Tubeless Ready |
