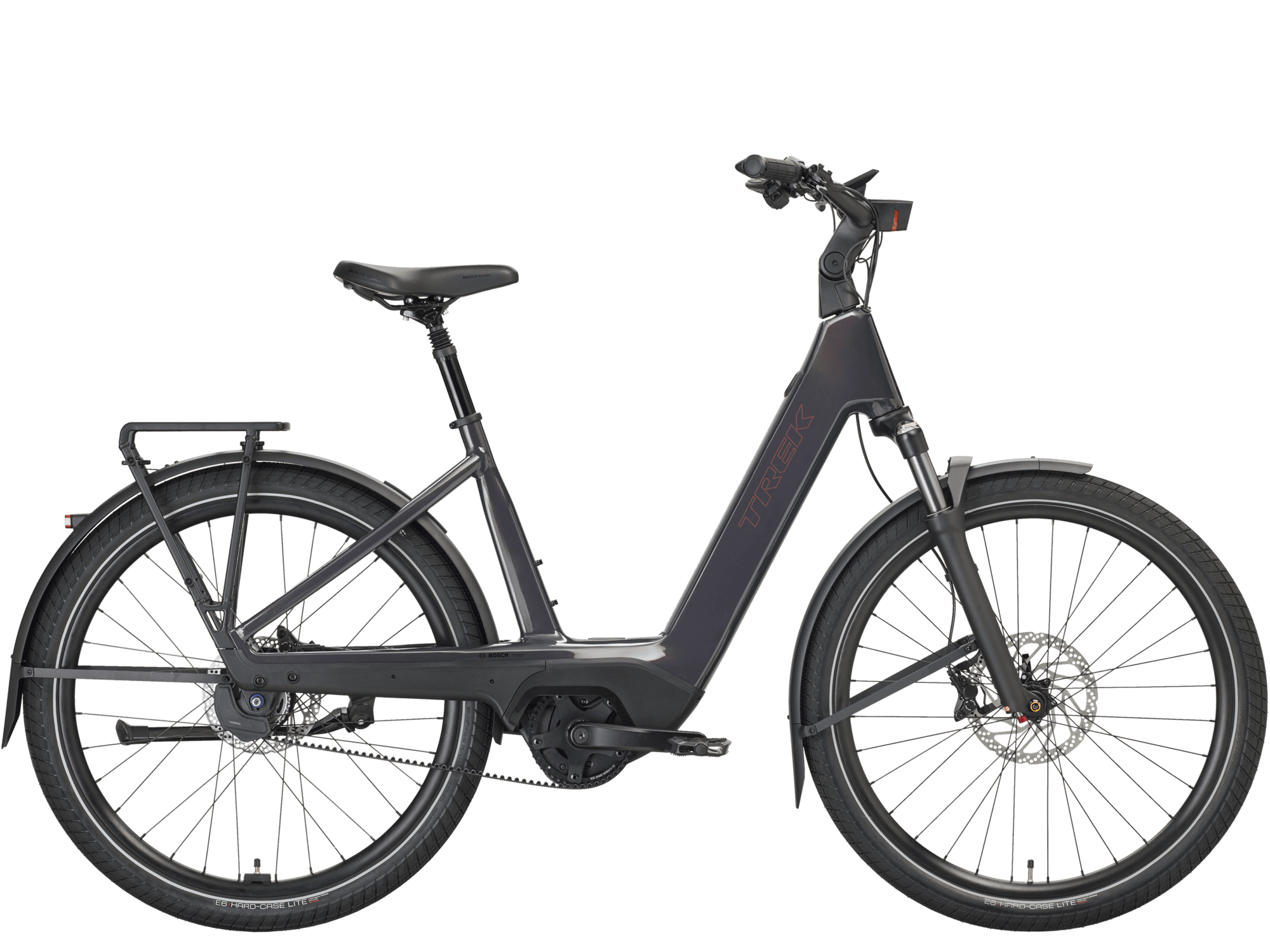

Trek Charter+ 5S Lowstep 2026
Class 3 E-Bike, 250W 85Nm mid mid-drive, 800Wh (36V × 22.2Ah) battery, hydraulic disc, aluminum step-through frame, 80mm air fork, 27.5"×2.4" hybrid tires, suspension seatpost
from
Where to buy
Trek Charter+ 5S Lowstep 2026
Performance Overview
What this shows
How this e-bike compares to similar models across the areas shown. The strengths and weaknesses below are where it stands out most, for better or worse.
Specifications
Category
| Category | Hybrid |
Motor & Assistance
| Motor Type | Mid-Drive |
| Motor Position | Mid |
Nominal Power | 250 W |
Peak Power | 750 W |
| Torque | 85 Nm |
| Sensor Type | Both |
| Assist Levels | 4 |
Speed & Class
| E-Bike Class | Class 3 |
| Top Assist Speed | 28 mph |
| Throttle | No |
Battery & Range
Battery Capacity | 800 Wh |
| Voltage | 36 V |
| Amp Hours | 22.2 Ah |
| Battery Position | Downtube |
| Removable Battery | Yes |
Frame & Fit
| Frame Material | Aluminum |
| Frame Style | Step-Through |
| Sizes Available | S, M, L |
Suspension
| Front Suspension | Air |
| Front Travel | 80 mm |
| Rear Suspension | None |
| Seatpost Suspension | Yes |
Drivetrain
| Gears | 1 |
| Drive System | Belt |
| Shifter | Electronic |
Brakes
| Brake Type | Hydraulic Disc |
| Rotor Size (Front) | 203 mm |
Wheels & Tires
| Wheel Size | 27.5 " |
| Tire Width | 2.4 " |
| Tire Type | Hybrid |
| Puncture Protection | No |
Components & Tech
| Display | LCD |
| Connectivity | Bluetooth |
| App Compatible | Yes |
Features & Safety
| Integrated Lights | Yes |
| Fenders | Yes |
| Rear Rack | Yes |
| Front Rack | No |
| Kickstand | Yes |
| Chain Guard | No |
| Walk Assist | Yes |
| Alarm | Yes |
| USB Charging | No |
| Bottle Cage Mount | Yes |
| IP Rating | Unknown |
| Certifications | UL 2849, UL 2271 |
| Special Features | Belt Drive, Gates Belt Drive, Automatic Shifting, Smartphone Integration |
