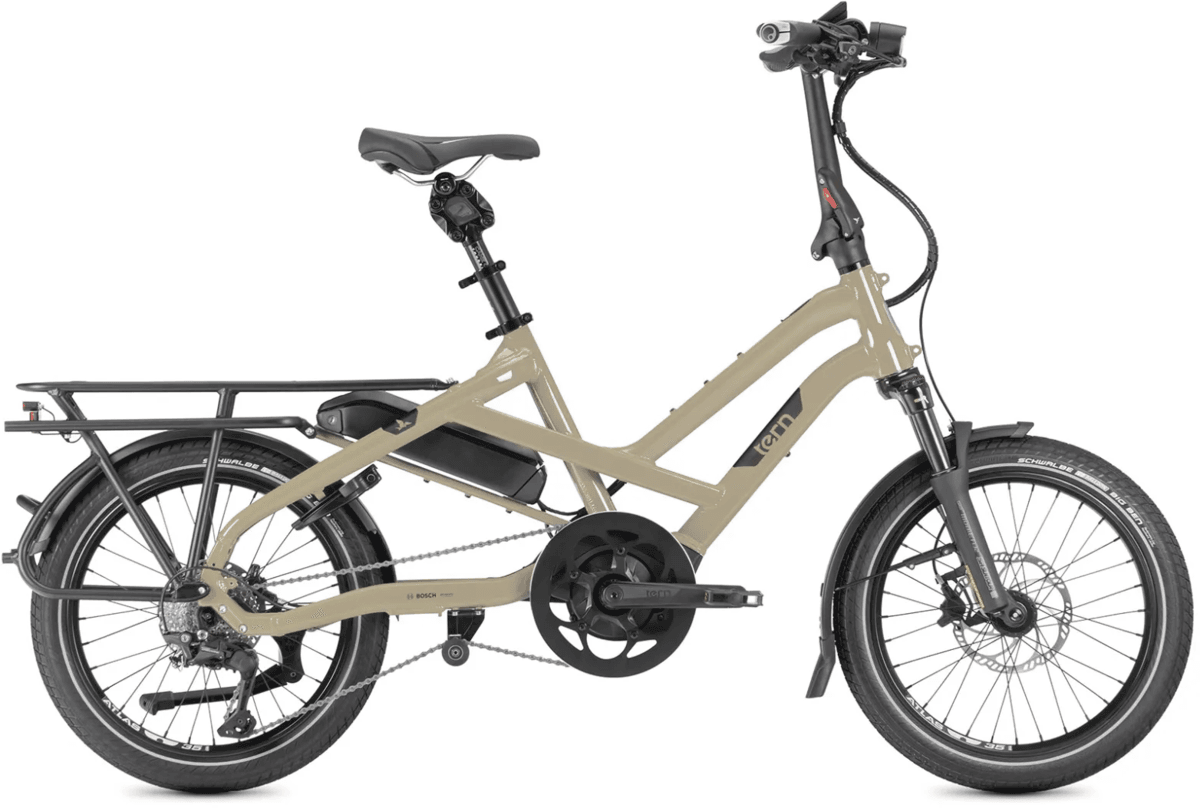

Tern HSD S11 2025
Class 3 E-Bike, 61.9 lbs, 250W 75Nm mid mid-drive, 545Wh (36V × 15.1Ah) battery, Magura MT4 hydraulic disc, aluminum step-through frame, 20"×2.15" Schwalbe Big Ben slick tires
from
Where to buy
Tern HSD S11 2025
Best price
Loading price…
Price history
6-month avg
6-month low
Performance Overview
What this shows
How this e-bike compares to similar models across the areas shown. The strengths and weaknesses below are where it stands out most, for better or worse.
Specifications
Category
| Category | Cargo |
Motor & Assistance
| Motor Type | Mid-Drive |
| Motor Position | Mid |
Nominal Power | 250 W |
| Torque | 75 Nm |
| Sensor Type | Torque |
| Assist Levels | 4 |
Speed & Class
| E-Bike Class | Class 3 |
| Top Assist Speed | 28 mph |
| Throttle | No |
Battery & Range
Battery Capacity | 545 Wh |
| Voltage | 36 V |
| Amp Hours | 15.1 Ah |
| Max Range | 76 mi |
| Battery Position | Unknown |
| Removable Battery | Yes |
Frame & Fit
| Frame Material | Aluminum |
| Frame Style | Step-Through |
| Sizes Available | One Size |
| Weight | 61.9 lbs |
| Weight Limit | 397 lbs |
| Rack Capacity | 176 lbs |
| Min Rider Height | 59.1 " |
| Max Rider Height | 76.8 " |
Suspension
| Front Suspension | None |
| Rear Suspension | None |
| Seatpost Suspension | No |
Drivetrain
| Gears | 11 |
| Drive System | Chain |
| Shifter | Trigger |
| Derailleur | Shimano Deore Shadow+ |
| Cassette | 11-36T, 11 spd |
Brakes
| Brake Type | Hydraulic Disc |
| Brake Brand | Magura |
| Rotor Size (Front) | 180 mm |
| Rotor Size (Rear) | 160 mm |
Wheels & Tires
| Wheel Size | 20 " |
| Tire Width | 2.2 " |
| Tire Type | Slick |
| Puncture Protection | Yes |
Components & Tech
| Display | LCD |
| Connectivity | GPS |
| App Compatible | Yes |
Features & Safety
| Integrated Lights | Yes |
| Fenders | Yes |
| Rear Rack | Yes |
| Front Rack | No |
| Kickstand | Yes |
| Chain Guard | Yes |
| Walk Assist | Yes |
| Alarm | No |
| USB Charging | No |
| Bottle Cage Mount | No |
| IP Rating | Unknown |
| Special Features | Smartphone Integration, Motor Lock, Internal Cable Routing |
