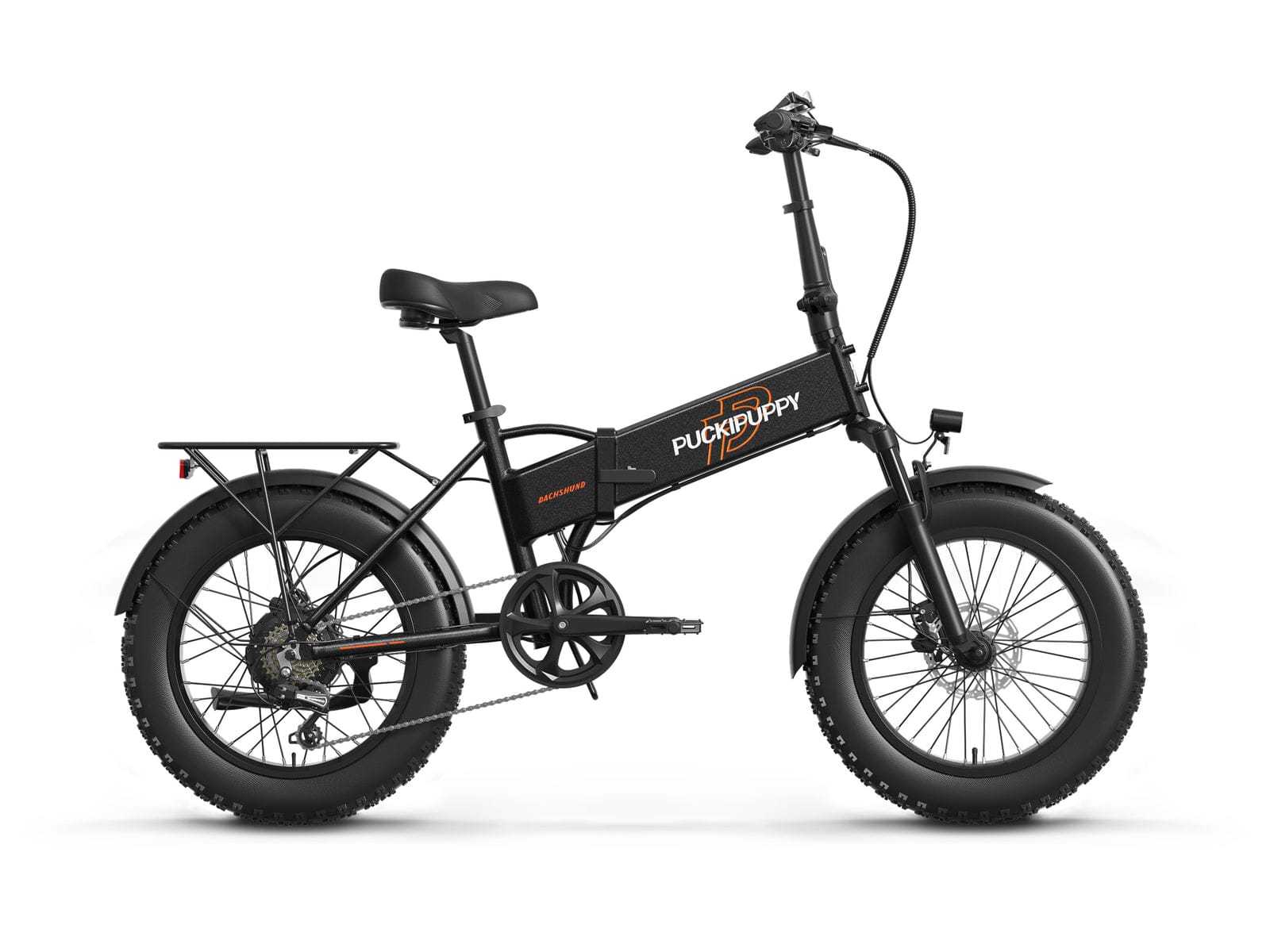

Puckipuppy Dachshund
Class 1/2/3 E-Bike, 72.6 lbs, 500W rear hub, 720Wh (48V × 15Ah) battery, hydraulic disc, aluminum folding frame, 80mm coil fork, 20"×4" fat tires
from
Where to buy
Puckipuppy Dachshund
Best price
Loading price…
Price history
6-month avg
6-month low
Performance Overview
What this shows
How this e-bike compares to similar models across the areas shown. The strengths and weaknesses below are where it stands out most, for better or worse.
Specifications
Category
| Category | Folding, Fat Tire |
Motor & Assistance
| Motor Type | Hub |
| Motor Position | Rear Hub |
Nominal Power | 500 W |
Peak Power | 960 W |
| Sensor Type | Cadence |
Speed & Class
| E-Bike Class | Class 1, Class 2, Class 3 |
| Top Assist Speed | 28 mph |
| Throttle | Yes |
| Throttle Top Speed | 20 mph |
Battery & Range
Battery Capacity | 720 Wh |
| Voltage | 48 V |
| Amp Hours | 15 Ah |
| Max Range | 60 mi |
| Battery Position | Downtube |
| Removable Battery | Yes |
Frame & Fit
| Frame Material | Aluminum |
| Frame Style | Folding |
| Sizes Available | One Size |
| Weight | 72.6 lbs |
| Weight Limit | 450 lbs |
| Standover Height | 26.8 " |
| Min Rider Height | 63 " |
| Max Rider Height | 76 " |
Suspension
| Front Suspension | Coil |
| Front Travel | 80 mm |
| Rear Suspension | None |
| Seatpost Suspension | No |
Drivetrain
| Gears | 7 |
| Drive System | Chain |
| Shifter | Trigger |
| Derailleur | Shimano |
Brakes
| Brake Type | Hydraulic Disc |
Wheels & Tires
| Wheel Size | 20 " |
| Tire Width | 4 " |
| Tire Type | Fat |
| Puncture Protection | No |
Components & Tech
| Display | LCD |
| App Compatible | No |
Features & Safety
| Integrated Lights | Yes |
| Fenders | Yes |
| Rear Rack | Yes |
| Front Rack | No |
| Kickstand | Yes |
| Chain Guard | No |
| Walk Assist | No |
| Alarm | No |
| USB Charging | No |
| Bottle Cage Mount | No |
| IP Rating | IPX6 |
| Special Features | Folding |
