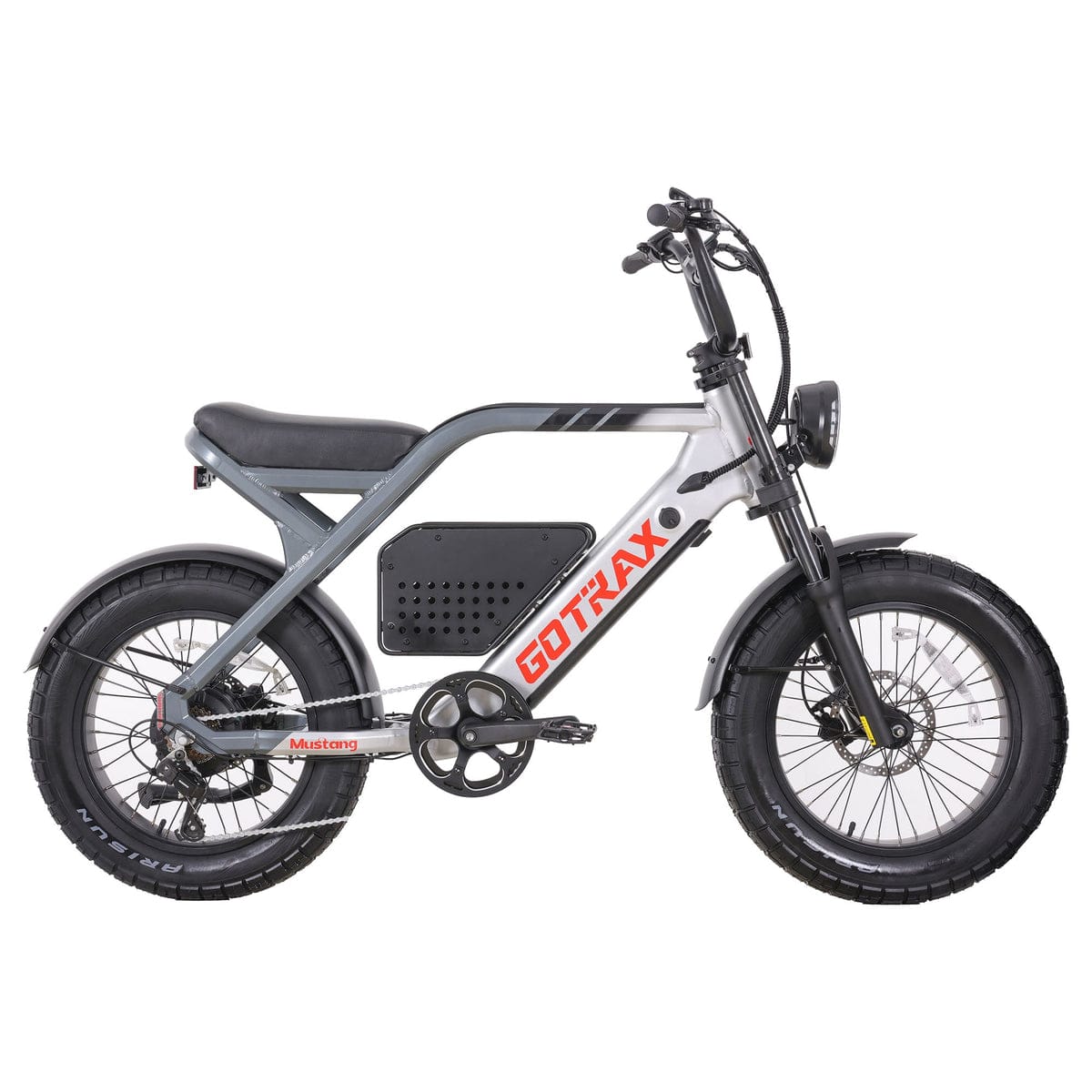

Gotrax Mustang
Class 2/3 E-Bike, 76.6 lbs, 750W 90Nm rear hub, 720Wh (48V × 15Ah) battery, Tektro hydraulic disc, aluminum frame, 80mm spring fork, 20"×4" Arisun fat tires
from
Where to buy
Gotrax Mustang
Performance Overview
Compare Gotrax Mustang to other e-bikes
Gotrax MustangSimilar E-Bikes
Find more E-BikesSpecifications
Category
| Category | Commuter, Fat Tire, Cruiser |
Motor & Assistance
| Motor Type | Hub |
| Motor Position | Rear Hub |
Nominal Power | 750 W |
| Torque | 90 Nm |
| Sensor Type | Torque |
| Assist Levels | 5 |
Speed & Class
| E-Bike Class | Class 2, Class 3 |
| Top Assist Speed | 25 mph |
| Throttle | Yes |
| Throttle Top Speed | 20 mph |
Battery & Range
Battery Capacity | 720 Wh |
| Voltage | 48 V |
| Amp Hours | 15 Ah |
| Max Range | 86 mi |
Charge Time | 7 hrs |
| Battery Position | Integrated |
| Removable Battery | Yes |
Frame & Fit
| Frame Material | Aluminum |
| Sizes Available | One Size |
| Weight | 76.6 lbs |
| Weight Limit | 264 lbs |
| Min Rider Height | 64 " |
| Max Rider Height | 74 " |
Suspension
| Front Suspension | Spring |
| Front Travel | 80 mm |
| Rear Suspension | None |
| Seatpost Suspension | No |
Drivetrain
| Gears | 7 |
| Drive System | Chain |
| Shifter | Trigger |
| Derailleur | Shimano |
| Cassette | Shimano 7-speed |
Brakes
| Brake Type | Hydraulic Disc |
| Brake Brand | Tektro |
| Rotor Size (Front) | 180 mm |
| Rotor Size (Rear) | 180 mm |
Wheels & Tires
| Wheel Size | 20 " |
| Wheel Size (Rear) | 20 " |
| Tire Width | 4 " |
| Tire Type | Fat |
| Puncture Protection | No |
Components & Tech
| Display | LCD |
| App Compatible | No |
Features & Safety
| Integrated Lights | Yes |
| Fenders | Yes |
| Rear Rack | No |
| Front Rack | No |
| Kickstand | No |
| Chain Guard | No |
| Walk Assist | No |
| Alarm | No |
| USB Charging | No |
| Bottle Cage Mount | No |
| IP Rating | Unknown |
