| Product Information | |
|---|---|
| Brand | Santa Cruz |

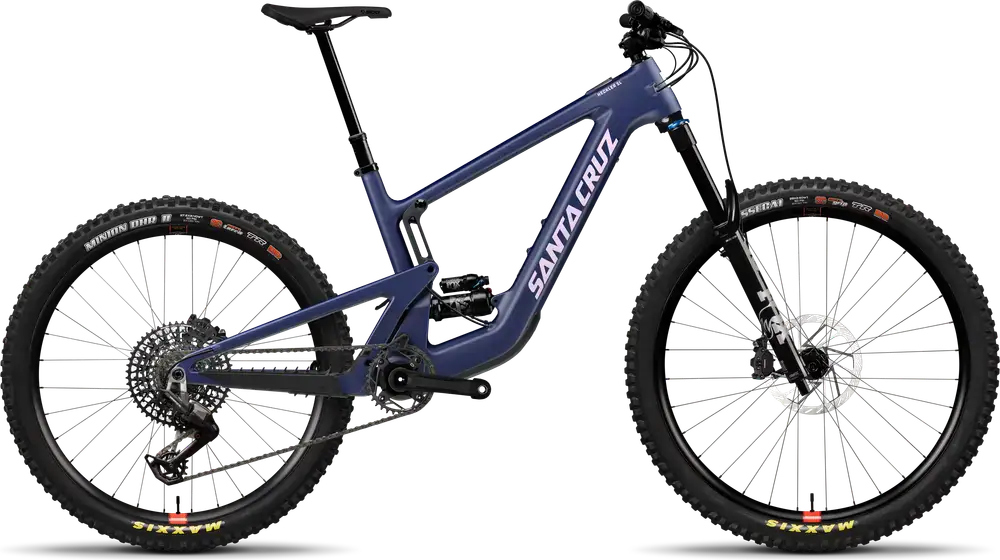

| Name | Heckler SL 90 2026 |
| Price | $8699 |
| Release Year | 2026 |
| Category | Mountain |
| Motor | |
| Motor Type | Mid-Drive |
| Motor Position | Mid |
| Motor Brand | Fazua |
| Motor Model | Ride 60 |
| Power (Nominal) | 250W |
| Power (Peak) | 450W |
| Torque | 60 Nm |
| Assist Levels | 3 |
| Sensor Type | Both |
| Battery | |
| Battery Capacity | 480 Wh |
| Voltage | 43.2V |
| Amp-hours | 11.1 Ah |
| Battery Position | Integrated |
| Removable Battery | No |
| Charge Time | 3.5 hrs |
| Speed & Class | |
| Class | Class 1 |
| Top Assist Speed | 20 MPH |
| Throttle | No |
| Drivetrain | |
| Gears | 12 |
| Drive System | Chain |
| Derailleur | SRAM 90 Eagle T-Type |
| Cassette | 10-52T |
| Shifter | Trigger |
| Brakes | |
| Brake Type | Hydraulic Disc |
| Brake Brand | SRAM |
| Brake Model | Maven Base |
| Rotor Size (Front) | 200 mm |
| Rotor Size (Rear) | 200 mm |
| Frame & Geometry | |
| Frame Material | Carbon Fiber |
| Frame Style | Step-Over |
| Sizes Available | S, M, L, XL, XXL |
| Min Rider Height | 61" |
| Max Rider Height | 79" |
| Wheelbase | 48.8" |
| Handlebar Width | 31.5" |
| Standover Height | 28.3" |
| Wheels & Tires | |
| Wheel Size | 29" |
| Tire Width | 2.5" |
| Tire Brand | Schwalbe |
| Tire Model | Albert |
| Tire Type | Knobby |
| Puncture Protection | No |
| Suspension | |
| Front Suspension | Air |
| Front Travel | 160 mm |
| Rear Suspension | Air |
| Rear Travel | 150 mm |
| Seatpost Suspension | No |
| Dimensions & Weight | |
| Weight | 44.4 lbs |
| Components | |
| Display | LED |
| Connectivity | Bluetooth |
| App Compatible | Yes |
| Integrated Features | |
| Integrated Lights | No |
| Fenders | No |
| Rear Rack | No |
| Front Rack | No |
| Kickstand | No |
| Chain Guard | Yes |
| Walk Assist | Yes |
| Alarm | No |
| USB Charging | Yes |
| Bottle Cage Mount | Yes |
| Safety & Compliance | |
| IP Rating | IPX5 |
| Advanced Comparison | |
| Price vs. Weight | 195.92 $/lb |
| Price vs. Power (Nominal) | 34.8 $/W |
| Price vs. Power (Peak) | 19.33 $/W |
| Price vs. Torque | 144.98 $/Nm |
| Price vs. Battery | 18.12 $/Wh |
| Price vs. Assist Speed | 434.95 $/MPH |
| Price vs. Gears | 724.92 $/gear |
| Battery vs. Weight | 10.81 Wh/lb |
| Power vs. Weight | 5.63 W/lb |
| Torque vs. Weight | 1.35 Nm/lb |
