| Product Information | |
|---|---|
| Brand | Ride1Up |

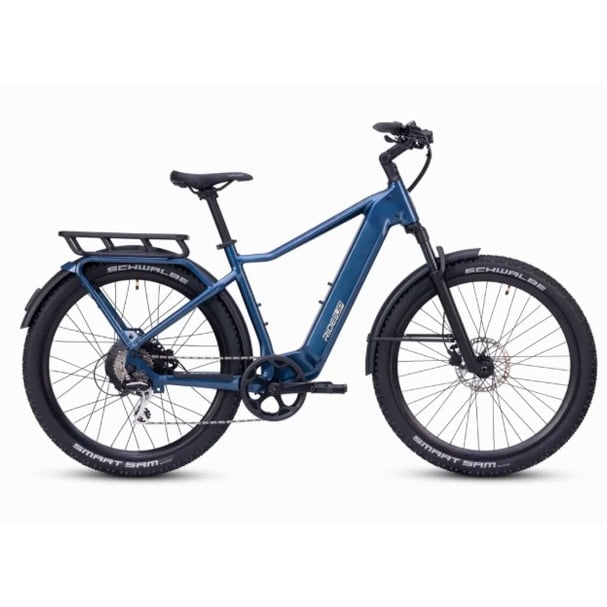

| Name | Vorsa XR |
| Price | $1595 |
| Release Year | 2024 |
| Category | Commuter, Cargo |
| Motor | |
| Motor Type | Hub |
| Motor Position | Rear Hub |
| Motor Brand | AKM |
| Motor Model | AKM hub motor |
| Power (Nominal) | 750W |
| Torque | 95 Nm |
| Sensor Type | Both |
| Battery | |
| Battery Capacity | 720 Wh |
| Voltage | 48V |
| Amp-hours | 15 Ah |
| Battery Position | Integrated |
| Removable Battery | Yes |
| Max Range | 45 miles |
| Speed & Class | |
| Class | Class 1, Class 2, Class 3 |
| Top Assist Speed | 28 MPH |
| Throttle | Yes |
| Drivetrain | |
| Gears | 8 |
| Drive System | Chain |
| Derailleur | Shimano Acera 8-speed |
| Cassette | 11-32T |
| Shifter | Trigger |
| Brakes | |
| Brake Type | Hydraulic Disc |
| Brake Brand | Star Union |
| Brake Model | Star Union hydraulic disc |
| Rotor Size (Front) | 180 mm |
| Rotor Size (Rear) | 203 mm |
| Frame & Geometry | |
| Frame Material | Aluminum |
| Frame Style | Step-Over |
| Sizes Available | One Size |
| Min Rider Height | 65" |
| Max Rider Height | 76" |
| Total Length | 71.7" |
| Min Handlebar Height | 42.9" |
| Max Handlebar Height | 42.9" |
| Min Seat Height | 31.4" |
| Max Seat Height | 40.7" |
| Wheelbase | 43.5" |
| Handlebar Width | 26.8" |
| Wheels & Tires | |
| Wheel Size | 27.5" |
| Tire Width | 2.6" |
| Tire Brand | Schwalbe |
| Tire Model | Sam Smart |
| Tire Type | Hybrid |
| Puncture Protection | No |
| Suspension | |
| Front Suspension | None |
| Front Travel | 100 mm |
| Rear Suspension | None |
| Seatpost Suspension | No |
| Dimensions & Weight | |
| Weight | 65 lbs |
| Weight Limit | 440 lbs |
| Rack Capacity | 150 lbs |
| Components | |
| Display | TFT |
| Connectivity | Bluetooth |
| App Compatible | Yes |
| Integrated Features | |
| Integrated Lights | Yes |
| Fenders | Yes |
| Rear Rack | Yes |
| Front Rack | No |
| Kickstand | No |
| Chain Guard | Yes |
| Walk Assist | No |
| Alarm | No |
| USB Charging | Yes |
| Bottle Cage Mount | Yes |
| Safety & Compliance | |
| IP Rating | IPX6 |
| Certifications | UL 2849, UL 2271 |
| Advanced Comparison | |
| Price vs. Weight | 24.54 $/lb |
| Price vs. Power (Nominal) | 2.13 $/W |
| Price vs. Torque | 16.79 $/Nm |
| Price vs. Battery | 2.22 $/Wh |
| Price vs. Range | 35.44 $/mile |
| Price vs. Assist Speed | 56.96 $/MPH |
| Price vs. Weight Limit | 3.63 $/lb |
| Price vs. Gears | 199.38 $/gear |
| Range vs. Weight | 0.69 mile/lb |
| Battery vs. Weight | 11.08 Wh/lb |
| Power vs. Weight | 11.54 W/lb |
| Torque vs. Weight | 1.46 Nm/lb |
